Description

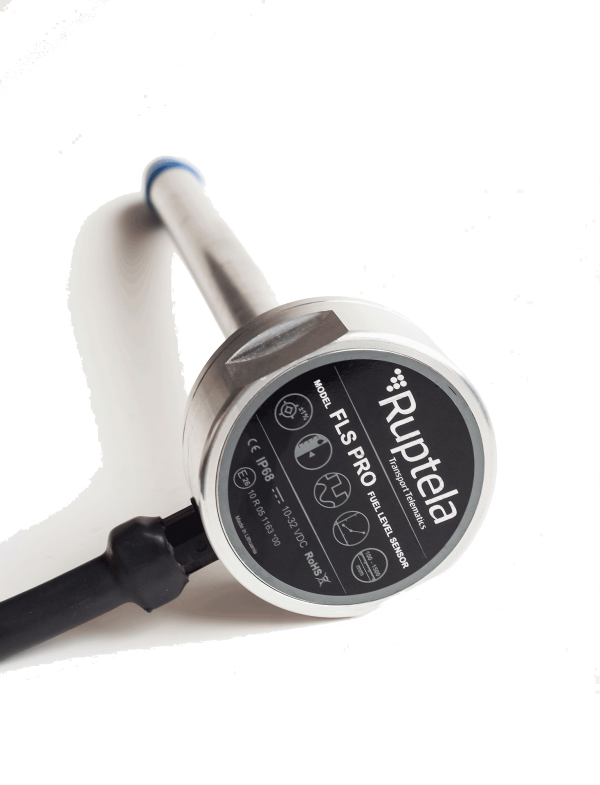

Fuel level sensor
The fuel level sensor is fully developed and manufactured by Ruptela for universal fuel management – monitoring fuel level, controlling fuel consumption and preventing fuel theft. It is available in standard and advanced versions, and the same sensor probe can be used with different heads – ECO and PRO.
Advanced electronics
- Digital measurement
- Measurement accuracy of 99%
- Remote configuration and updates
- Analogue: Voltage and Frequency
- RS232 and RS485 interfaces
- Inclinometer
- Temperature sensor
Solid construction
- IP68 certified
- Aluminium housing
- Probe length 300 – 750 mm
- Extra protected cables and connections
- Galvanic isolation
Easy installation
- Dry and wet calibration
- Cable length — 7 meters
| Power supply | 12/24 V DC (range: 10-32 V DC) |
| Accuracy | <1% error |
| Probe length | 300 – 750 mm |
| IP protection | IP 68 |
| Calibration | Wet (PC connection required) and dry |
| ECO version | PRO version | |
| Data output | Analog, Frequency, RS232 (for config.) | Analog, Frequency, RS232, RS485 |
| Inclinometer | No | X; Y axis |
| Temperature measure | No | Yes |
| Tethering in FLS head | No | Yes |
