4 Channel AHD Hard Disc Mobile DVR Pack
kit comprises of the following (other cameras/option can be added at extra cost)
- 1 x 1.4 CH HDD AHD MDVR with dual SD card for safe storing Hard Disc Mobile DVR – 1TB HD pre installed
- 1 x 7″ Monitor 12-24v
- 2 x IR Side View Cameras
- 1 x Forward Facing Mini Camera

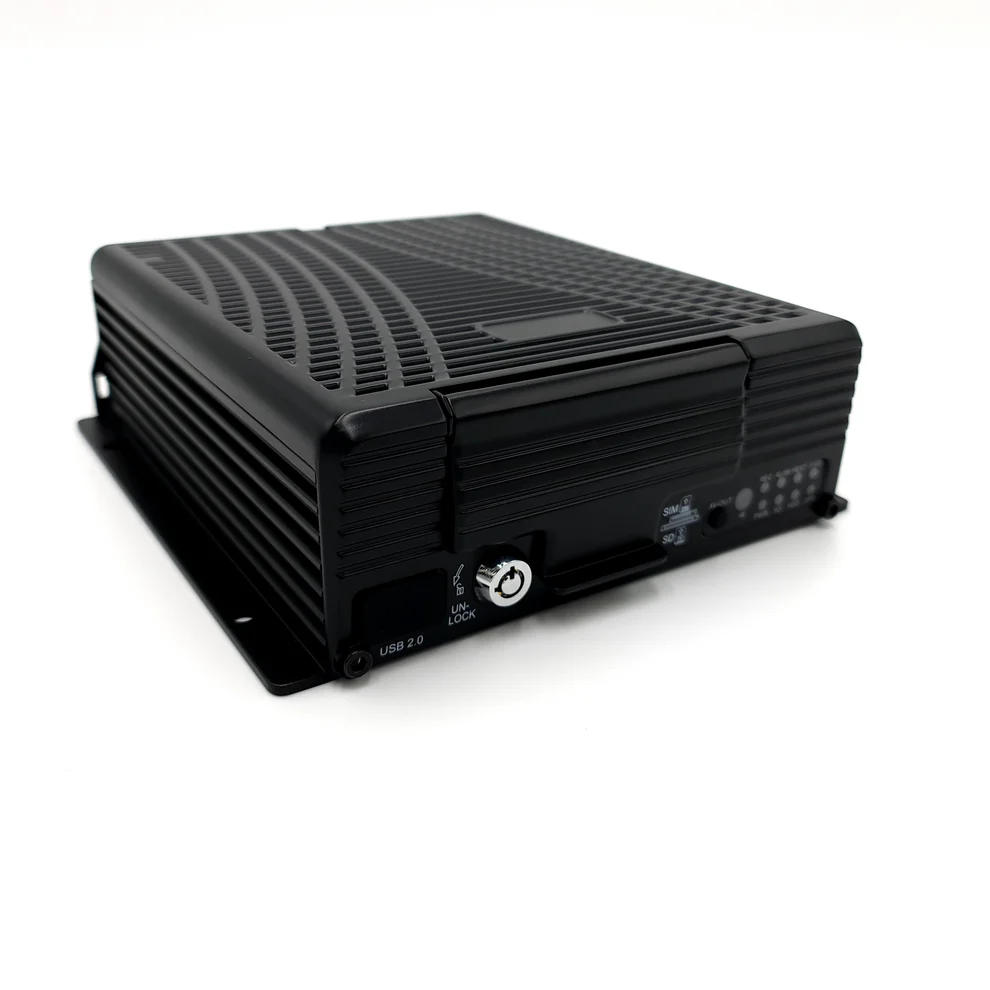

4 Channel Mega Pixels HD AHD Multi-Functional Mobile DVR
A ruggedised Mobile Digital Video Recorder. TheMDVR470H multi function MDVR offers 4 channel real-time 720P AHD Mega Pixel or Standard 4 channel Analogue camera input. Facility to mix 2 channel AHD and 2 channel standard cameras. 720P/D1/HD1/CIF with adjustable frame rate quality.
Professional power design suitable for all kinds of vehicles, 8-36V DC with wide voltage overload, short circuit, reverse plarity, protection. The MDVR can power 12V cameras, monitors and some peripheral devices through the 4 pin Aviation connectors.
1TB ‘included’ Hard Drive (HDD) and SD card data storage (max 2TB 2.5″ SATA HDD, 128GB SD card).
Robust construction to resist vehicle vibrations, dust etc. Watchdog function to monitor for abnormal behaviour and protect data. This ruggedised 4 Ch MDVR is ideal for HGV, buses, coaches and other forms of transport.
Video Record System Video Input 4CH 720P AHD/4CH SD/2CH HD+2CH SD. 4-pin aviation type connectors allow the cameras to be powered from the DVR. Resolution Support 720P/D1/CIF, MAX: 4 channels 720P or 4channels D1(analog) Options available:- LAN, WiFi, 3G* and GPS. This product is very useful for trucks and lorries that must adhere to a strict Health & Safety procedure when loading and unloading or to comply with The London Safer Lorry Scheme & The Fleet Operator Recognition Scheme (FORS).
Video evidence of any incidents are securely saved to the 1TB HD then, if required can be transferred easily to an SD memory card (Not supplied). *Monthly data charges apply if 3G option chosen.
7″ Universal Monitor with Sun Visor 12-24v
This high performance 7 inch monitor can be used in 12 or 24 Volt vehicles. With dual video inputs the panel resolution of 800 x RGB x 480 produces good clear images. It uses the 4 pin Aviation style connectors with the threaded outer ring to give a very secure connection. The stand can be mounted in variety of ways – on a horizontal or vertical surface etc. Ideal for blind spot/blind side visibility.

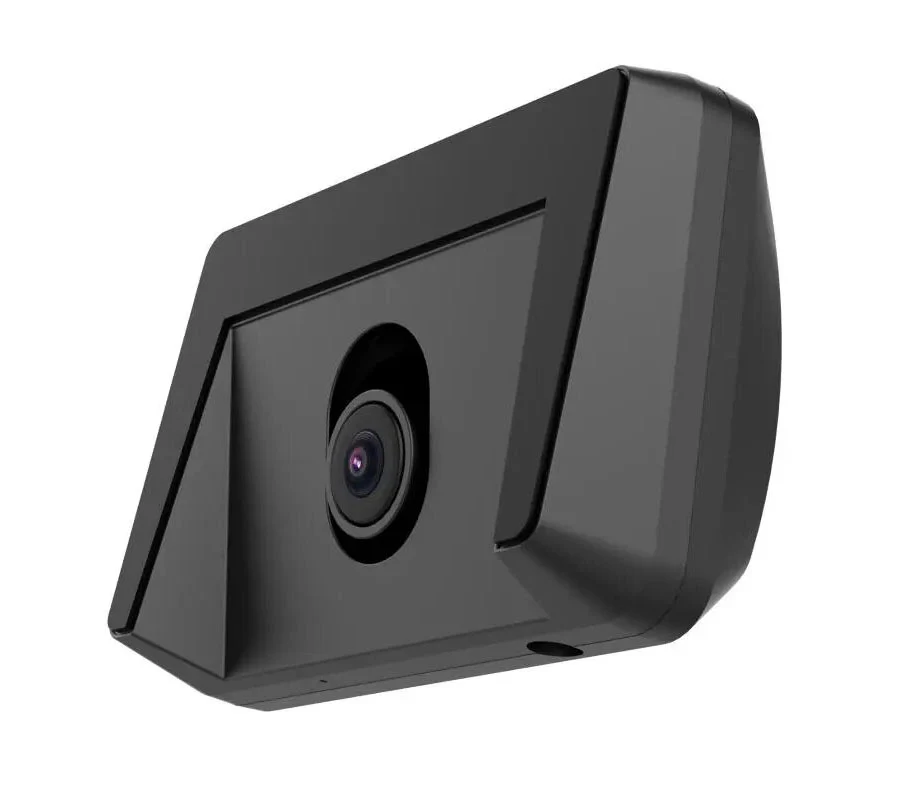

Side View Camera AHD 720P Mirror Image Black/White
The side view camera can be mounted on either side of a vehicle. Mounted at the front of the vehicle it will give a clear view blind spots not covered by the normal mirrors. The camera has a mirror image so is best mounted in a rear-facing position. Suitable for trucks, vans and HGV vehicles Supplied with 4 Pin Aviation style connector. The heavy duty casing allows full adjustment of left/right up/down of 30 degrees.
The video format of this camera is Analogue High Definition (AHD) 720P and can only be used with an AHD recorder or monitor. 1.3Megapixel / 720p. NTSC/PAL 1280(H)*960(V) 130W
Forward Facing Mini Camera
With a diameter of only 16mm this vehicle camera is ideal for mounting on the rear of car. Also suitable for inside taxi cabs to monitor passengers. Couple with one of our mobile recorders (MDVR) to record the images.
Can also be used as forward facing camera. Used in conjunction with the MDVR470H recorder it makes an excellent dash-cam. Often used on right hand drive vehicles for continental driving to see when it is clear to overtake.
Now based on the PixelPlus PC3089 chipset giving 700TVL resolution. This high performance chipset produces images that are as good as Sony CCD based products.
